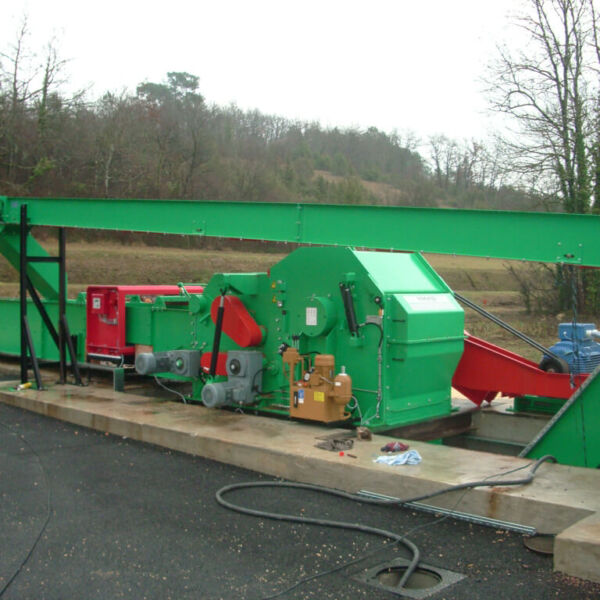

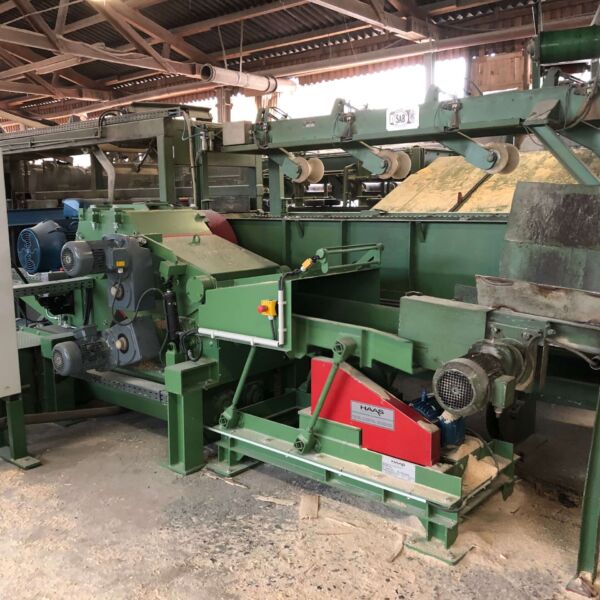

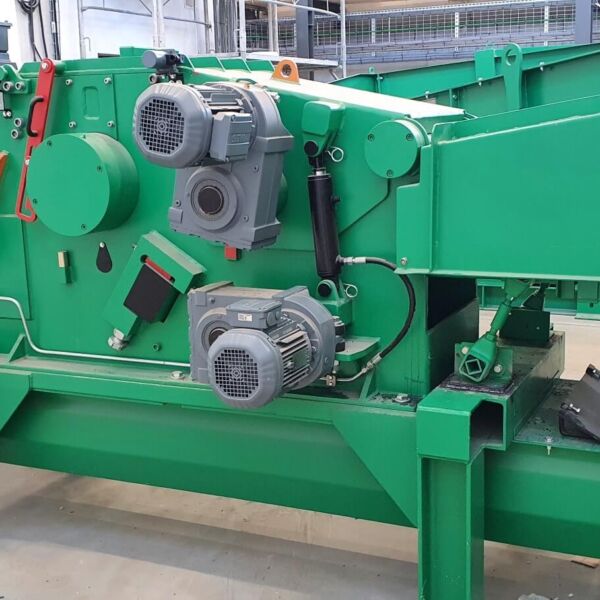

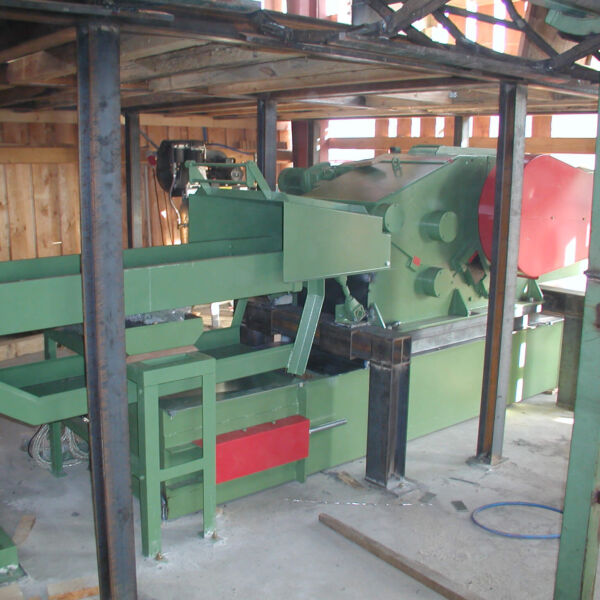

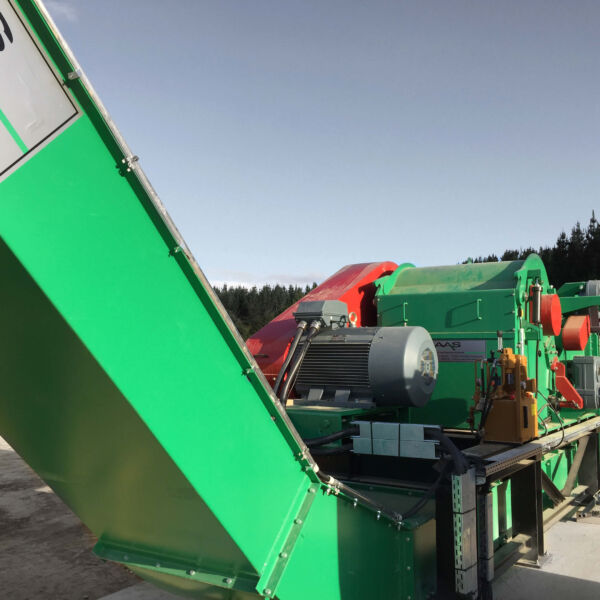

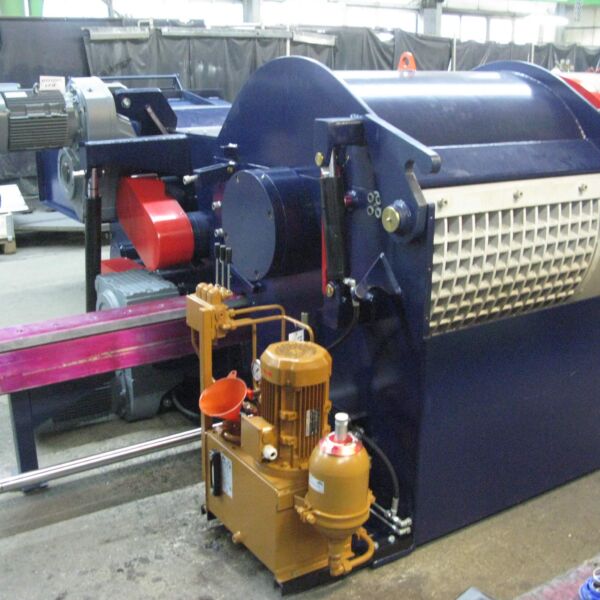

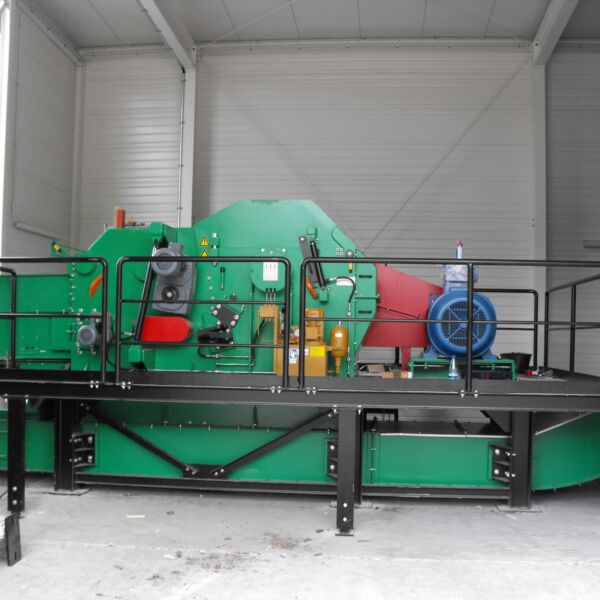

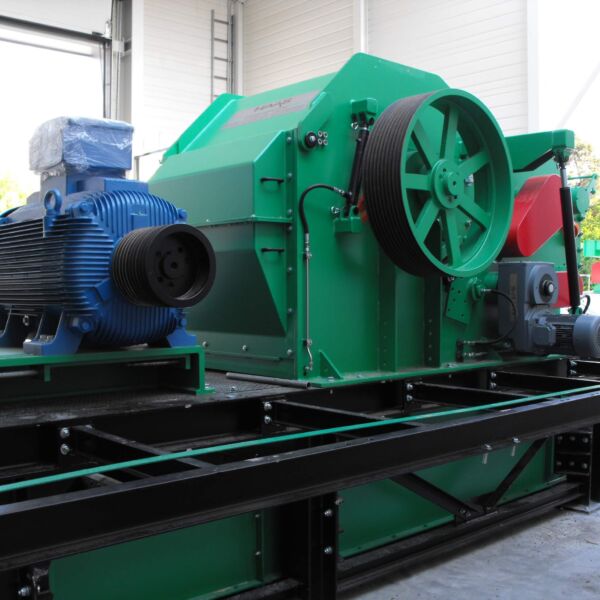

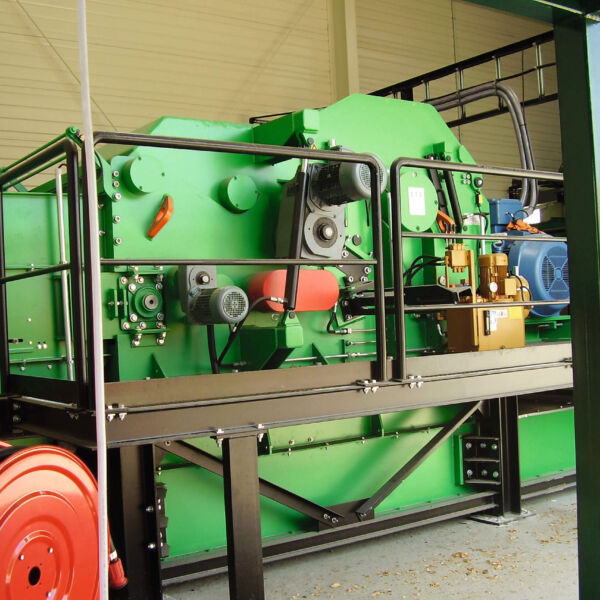

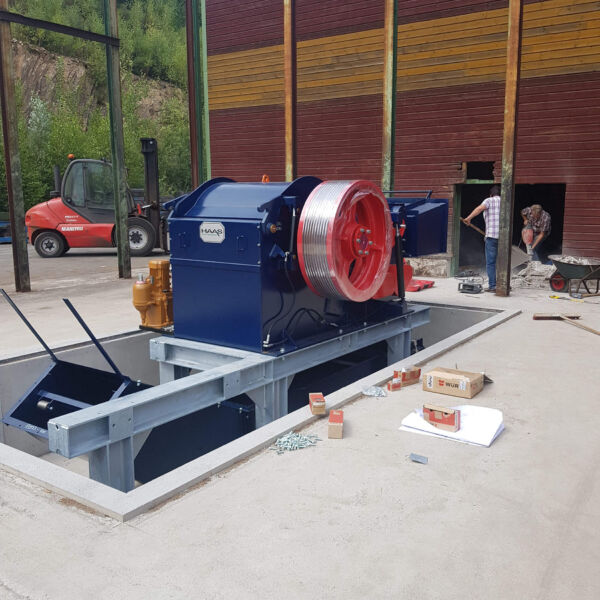

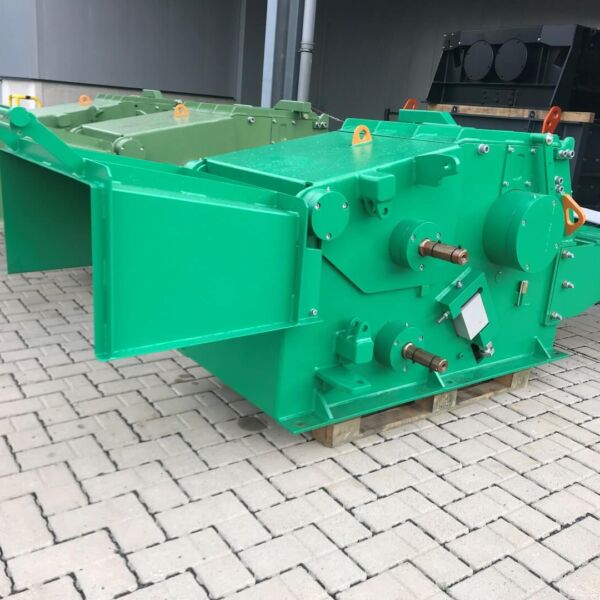

HAAS Drum Chipper
The versatile drum chippers are exceptional trustworthy and powerful due to 30 years of experience and competence.
To produce wood chips of high quality the drum chippers will be customized for the specific customer requirements.

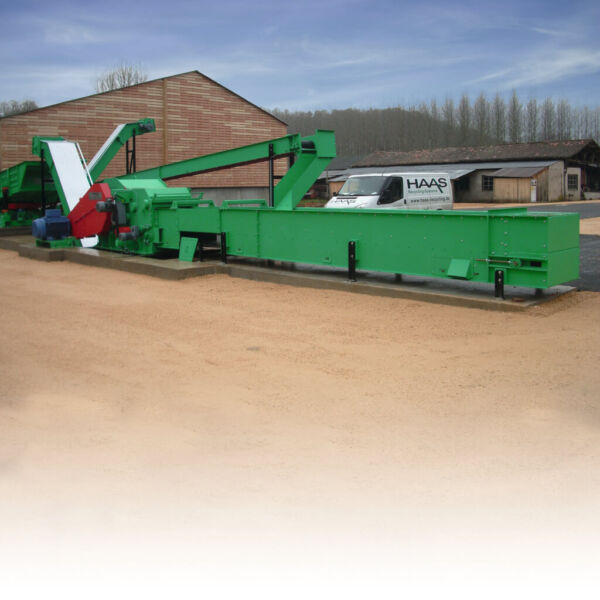

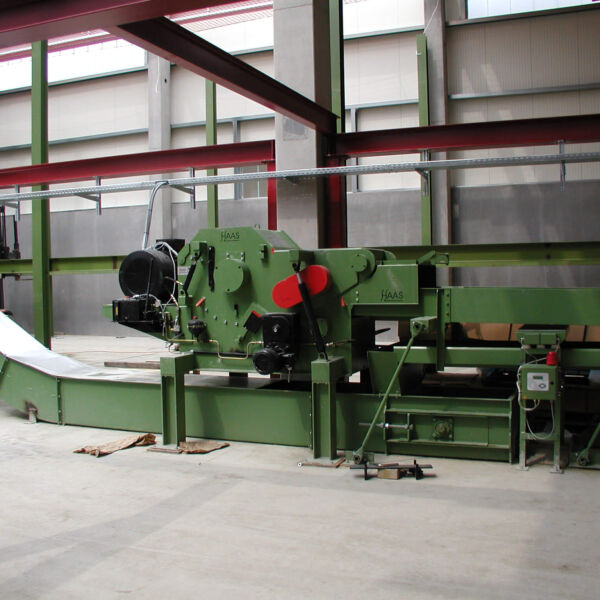

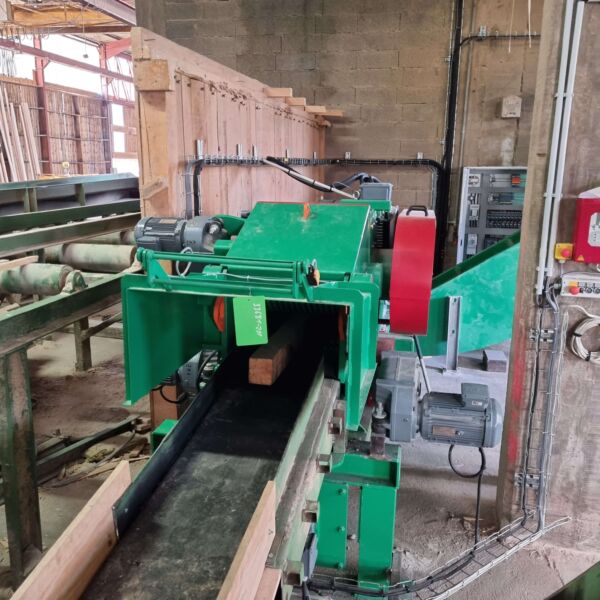

The material to be processed – trunks, sawmill waste wood or wooden rinds – is fed horizontally to the machine. The infeed is possible via a vibrating infeed as well as a conveyor belt.

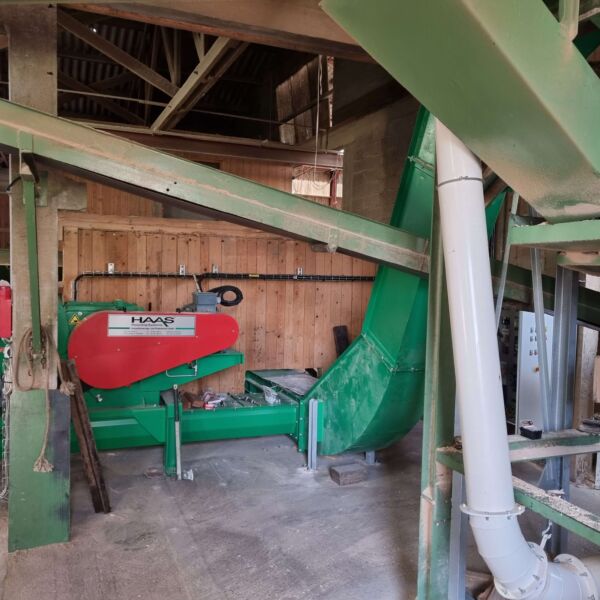

The drum chippers and if applicable complemental components like storage- and conveying technology provide economical and efficient solutions for the production of high-quality wood chips for small, middle and high throughputs.
HAAS-drum chippers convince due to their low energy needs, high throughput capacity, minimal maintenance effort, low wear costs and steady, maximum availability.
Specifications
| Model | Rotor Ø | Knives | Drive | Productivity | Infeed height | Infeed width |
|---|---|---|---|---|---|---|
| 150er | 500 mm | 2 – 3 | 22 – 90 kW | 2 – 15 m/h | 150 mm | 510 – 810 mm |
| 200er | 600 mm | 2 – 4 | 30 – 90 kW | 15 – 25 m/h | 200 mm | 510 – 810 mm |
| 250er | 750 mm | 2 – 4 | 45 – 100 kW | 15 – 80 m/h | 250 mm | 510 – 1000 mm |
| 350er | 1000 mm | 2 – 4 | 75 – 250 kW | 25 – 60 m/h | 350 mm | 500 – 1000 mm |
| 450er | 1200/1300 mm | 3 – 4 | 132 – 250 kW | 35 – 110 m/h | 450 mm | 500 – 1200 mm |
