Clamshell grabs

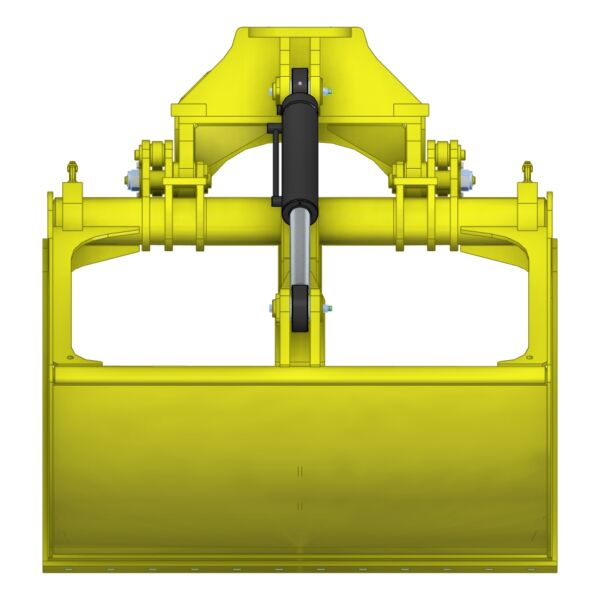

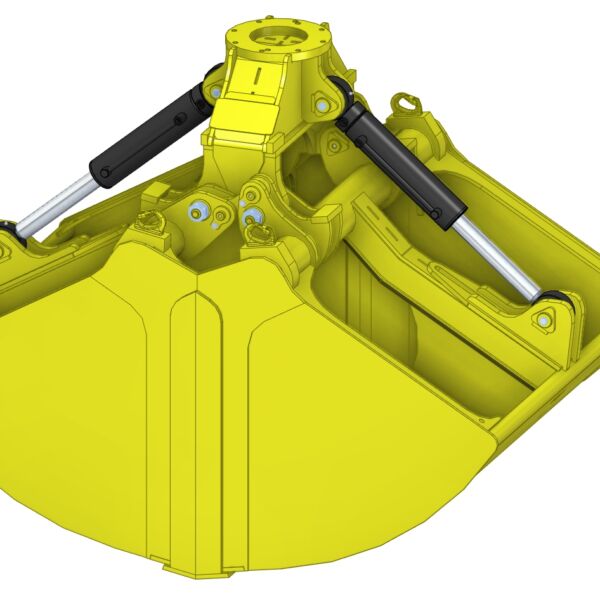

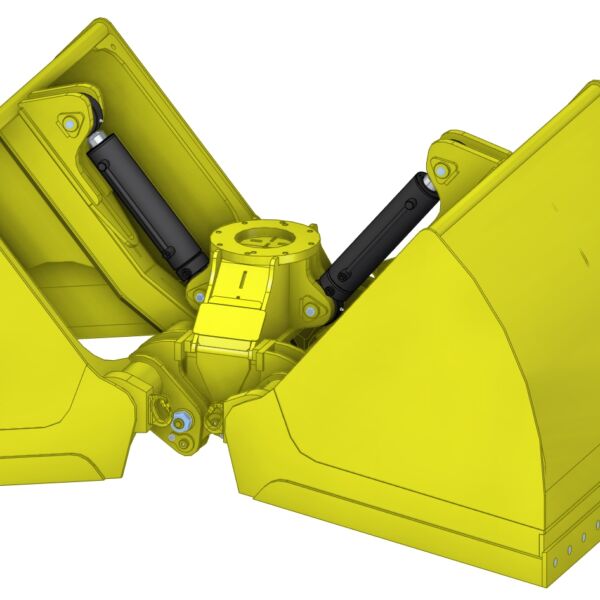

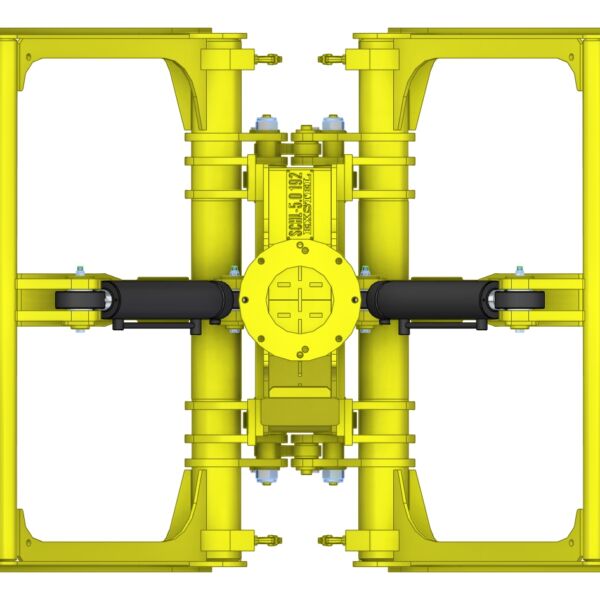

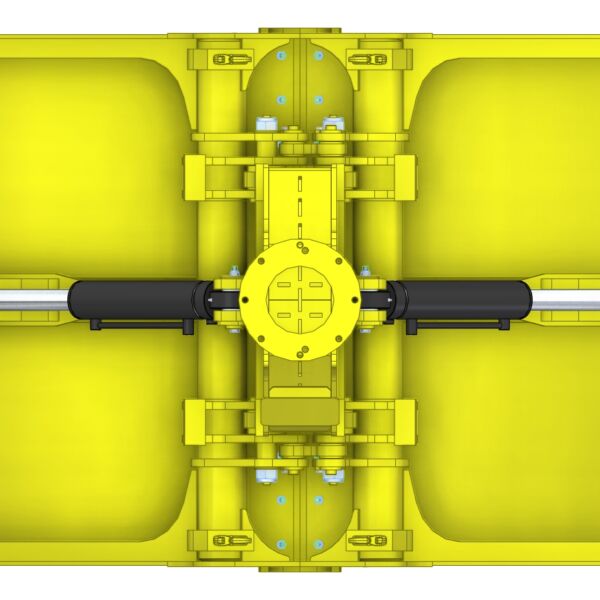

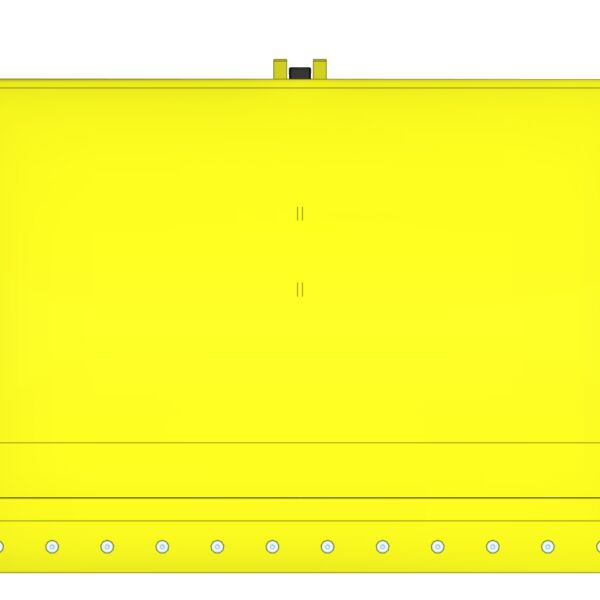

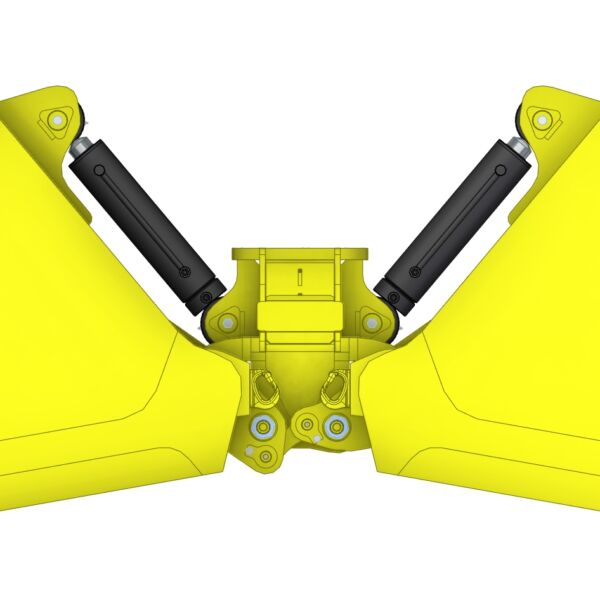

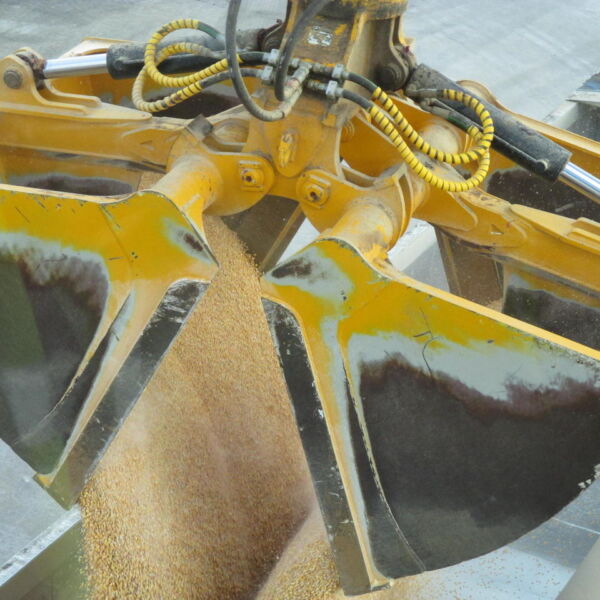

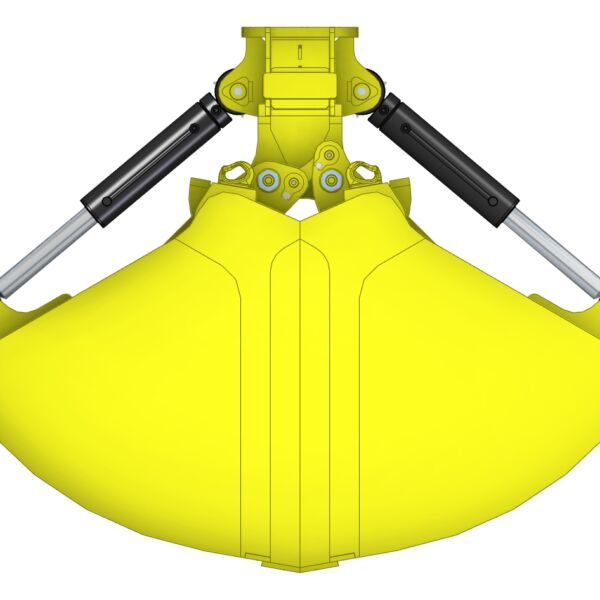

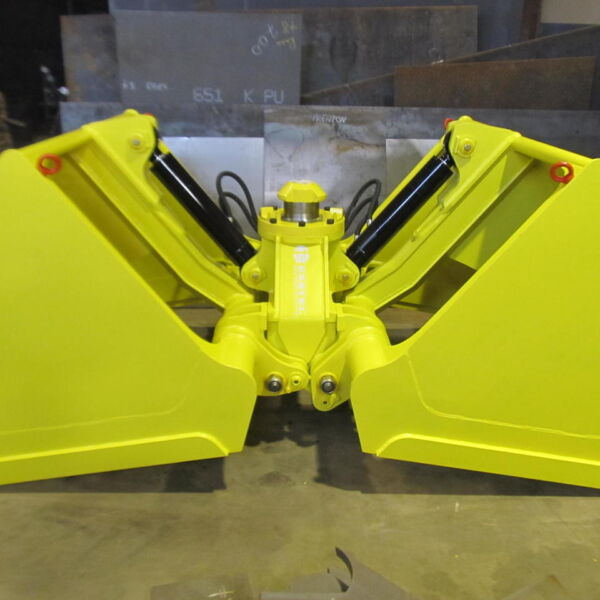

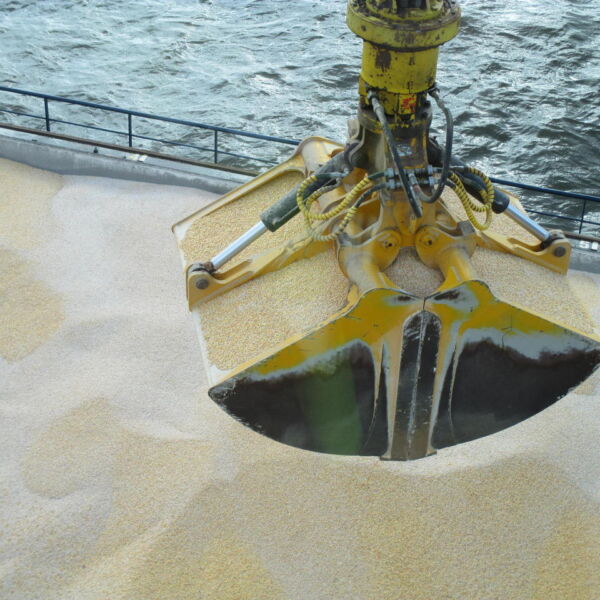

Heavy Duty Clamshell Type SCHL

Clamshell grab for materials with piled density up to 2,0 t/m³ and granule size up to 40mm

Specifications

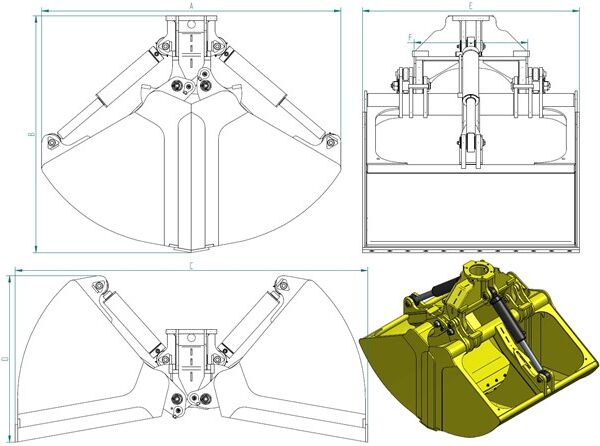

Type	Grab capacity	Dead weight	Dimensions in mm						Material density	SWL
SCHL	m³	kg	A	B	C	D	E	F	t/m³	t
SCHL-3.0	3	2900	2560	2040	3020	1430	1680	1010	2	6
SCHL-4.0	4	3050	2660	2100	3130	1480	1930	1010	2	8
SCHL-5.0	5	3530	2840	2210	3340	1580	2080	1010	2	10
SCHL-6.0	6	3700	2950	2270	3460	1640	2280	1010	2	12
SCHL-7.0	7	4200	3050	2330	3580	1700	2460	1010	2	14
