De-Icing Technology

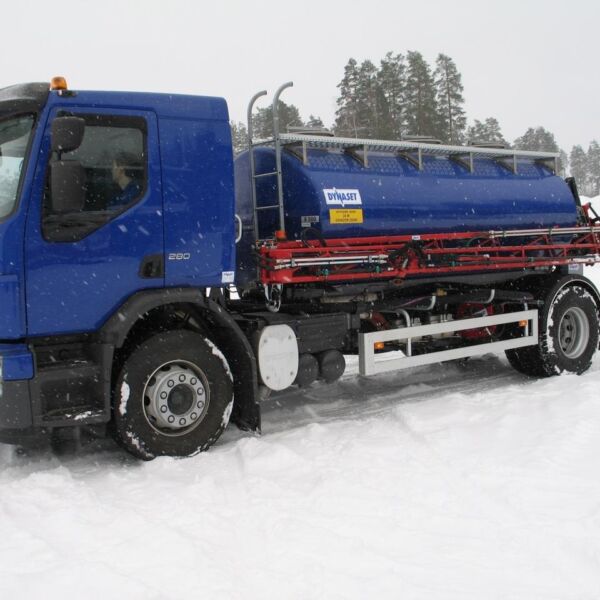

Dynaset De-icing Technology provides fast, highly automated and cost effective modules for spraying de-icing fluids to remove ice or prevent icing. Modules are complete systems for all standard trucks and tractors. Dynaset provides various applications for spreading de-icer on roads, parking lots, runways, aircrafts etc.

Features and benefits
Amount of de-icer is adjusted automatically according to the vehicle speed which allows optimal fluid consumption (g/m2). Dynaset equipment has quick return on investment when fluid optimization will bring significant savings. Dynaset equipment are powered by hydraulics of a truck or a tractor and the equipment run without additional engines or fuel. User friendly interface with memory card, flash drive, USB drive and thermal printer makes the system easy to use. Complete usage reports allows monitoring e.g. the consumption of expensive de-icer. Additional spraying pistol and hose reel completes the system. The emission free technology provides environmentally friendly equipment.

DYNASET DE-ICING MODULES

1. DYNASET HVO HYDRAULIC POWER TAKE OFF (PTO)

HVO takes power out of engine even when there isn’t PTO available. It is suitable for all vehicle brands and saves a lot of space from a vehicle. Dynaset hydraulic variable high speed pump rotates freely without noise and can be used from idle to full power.

HVO includes e.g.

Hydraulic LS-pump with PTO (power take off)
Cooled oil tank with return line filter, temperature and oil level switches

2. AUTOMATIC HYDRAULIC SPRAYING SYSTEM

The automatic high pressure system sprays de-icer efficiently and adjusts fluid consumption according the vehicle speed level. Operator controls the system with easy user interface from the vehicle’s cabin.

The system includes e.g.

HPW hydraulic high pressure fluid pump, hydraulic components
Spraying nozzles, nozzle pipes, spraying pistol and hose reel
User friendly interface with memory card, flash and USB drives
Usage reports and thermal printer

3. FLUID TANKS

Dynaset provides various kinds of fluid tanks for de-icer based on customer’s and application’s requirements.

Fluid tank includes e.g.

De-icer fluid tank (e.g. 8500l, chemical resist composite)
Suction filter
3” drain valve
Maintenance bridge
Two level switches and level measurement sensor

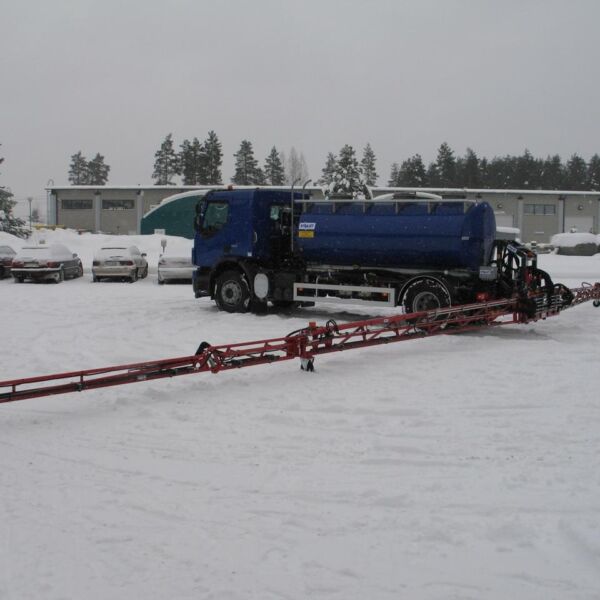

4. AUTOMATIC HYDRAULIC BOOM SYSTEM

Automatic hydraulic boom system for vehicles has stabilizer and lift to ensure the boom is aligned horizontally during de-icing work. The system has various working widths starting from few meters to cover even biggest runways and road surfaces. It automatically switches between transport and different working positions.

The system includes e.g.

Hydraulic operated boom
Warning lights

5. EXPERTICE

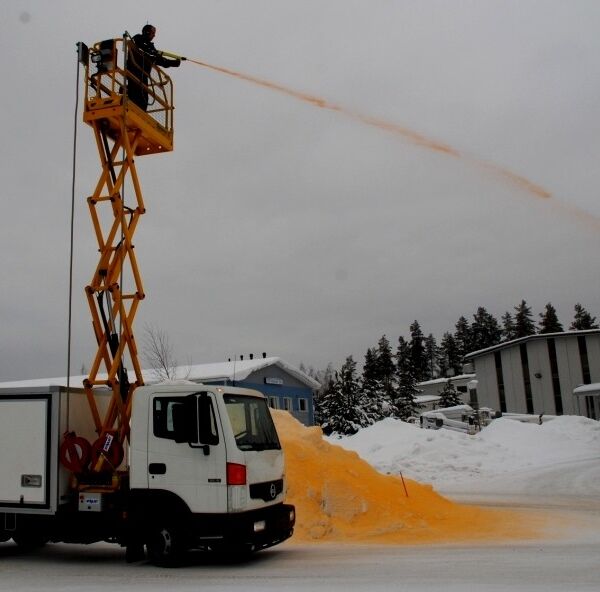

Dynaset is familiar with all hydraulic systems and has a lot of experience of integration with different vehicle brands such as Mercedes Benz, Scania, Volvo, Iveco, Mack etc. The company provides de-icing modules and installations based on customers’ needs. The modules are applied for different purposes e.g. de-icing aircraft wings. The Dynaset hydraulic powered equipment has the World’s best power-to-size ratio which guarantees the easiest on-board installation on all machines.
